Схема запчастей вибротрамбовок
|

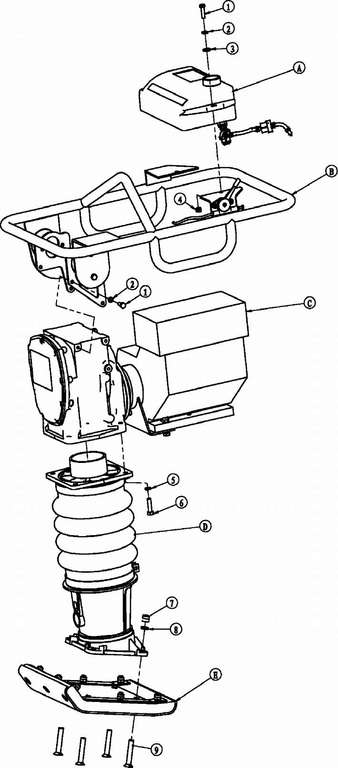

ITEM NO. |
PART NO. |
DESCRIPTION |
QTY |
|
A |
EMR70.8000 |
FUEL TANK ASSY. |
1 |
|
B |
EMR70.6000 |
HANDLE ASSY. |
1 |
|
C |
EMR70.4000 |
GEARBOX ASSY. |
1 |
|
D |
MRS80-803000 |
GUIDE |
1 |
|
E |
EMR70.2000 |
FOOT ASSY. |
1 |
|
1 |
GB5783-M8x30 |
SOCKET HEAD SCREW M8X30 |
8 |
|
2 |
GB93-8 |
SPRING WASHER |
8 |
|
3 |
GB97.1-8 |
FLAT WASHER |
2 |
|
4 |
GB6170-M8 |
NUT M8 |
2 |
|
5 |
GB93-10 |
SPRING WASHER |
4 |
|
6 |
GB5783-M10x35 |
HEX HEAD SCREW M10X35 |
4 |
|
7 |
GB889-M12 |
LOCK NUT M12 |
4 |
|
8 |
GB93-12 |
SPRING WASHER |
4 |
|
9 |
MRS80-802004-70 |
SCREW M12X70 |
4 |
|
ITEM NO. |
PART NO. |
DESCRIPTION |
QTY |
|

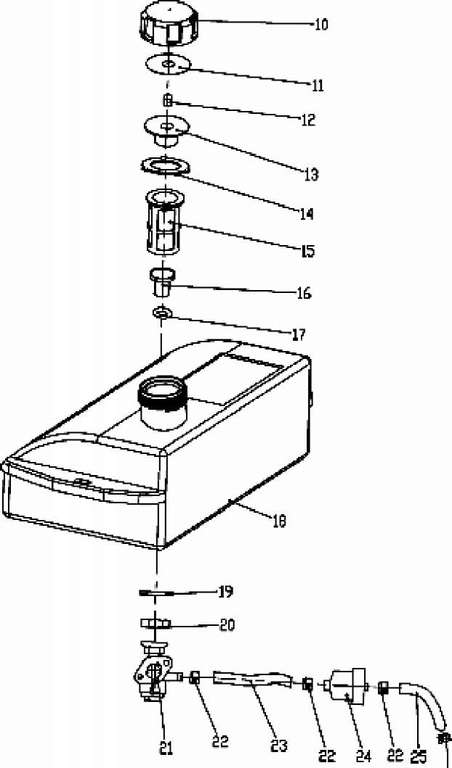

10 |
MRS80-801002 |
CAP, FUEL TANK |
1 |
|
11 |
MRS80-801003 |
PACKING, FUEL TANK |
1 |
|
12 |
MRS80-801010 |
AIR FILTER |
1 |
|
13 |
MRS80-801004 |
HOLDER, FUEL TANK |
1 |
|
14 |
MRS80-801005 |
PACKING, FUEL TANK |
1 |
|
15 |
MRS80-801007 |
OIL STRAINER |
1 |
|
16 |
MRS80-801006 |
CONNECTOR |
1 |
|
17 |
GB3452.1-14x3.55 |
O-RING |
1 |
|
18 |
MRS80-801001 |
FUEL TANK |
1 |
|
19 |
GB97.1-14 |
FLAT WASHER |
1 |
|
20 |
GB6173-M14x1.5 |
HEX HEAD SCREW M14X1.5 |
1 |
|
21 |
MRS80-801005 |
COCK, FUEL TANK |
1 |
|
22 |
Q673B^9 |
HOSE CLAMP |
|
|
23 |
MRS80-801011A |
FUEL HOSE |
1 |
|
24 |
MRS80-801009 |
FUEL FILTER |
1 |
|
25 |
MRS80-801011B |
FUEL HOSE |
1 |
|
TEM NO. |
PART NO. |
DESCRIPTION |
QTY |
|

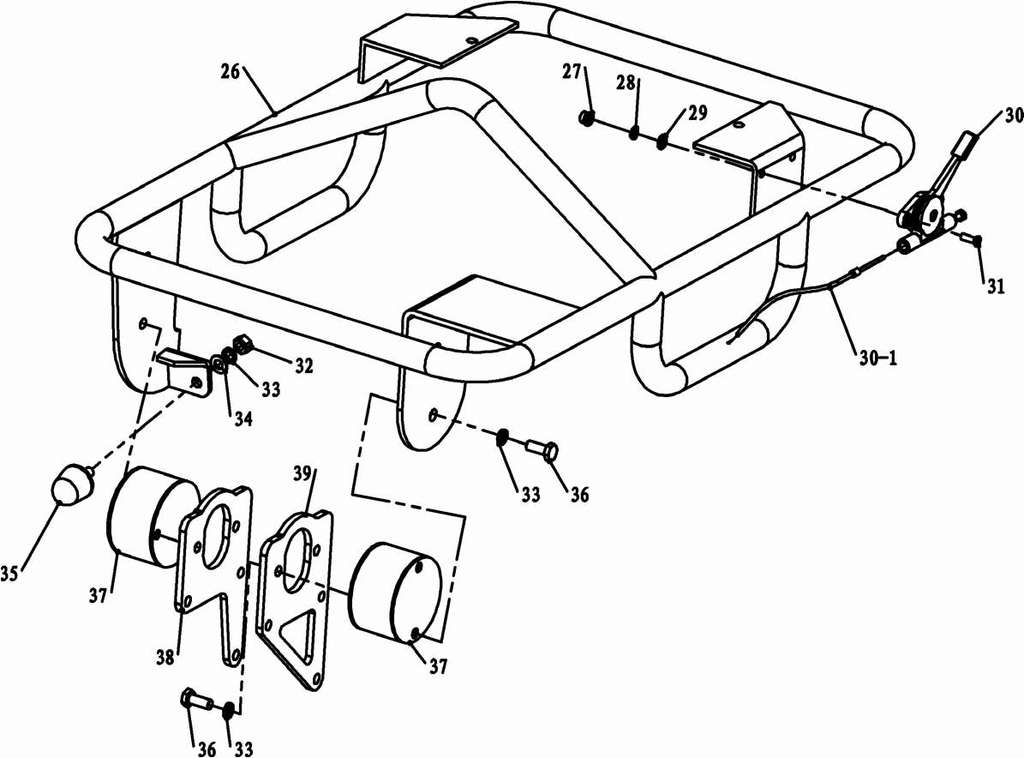

26 |
EMR70.5000 |
HANDLE |
1 |
|
27 |
GB6170-M6 |
NUT M6 |
2 |
|
28 |
GB93-6 |
SPRING WASHER 6 |
2 |
|
29 |
GB97.1-6 |
FLAT WASHER 6 |
2 |
|
30 |
EMR70-9910 |
THROTTLE LEVER |
1 |
|
30-1 |
EMR70-9910-1 |
THROTTLE CABLE |
|
|
31 |
GB276-M6X15 |
HEX HEAD SCREW M6X15 |
2 |
|
32 |
GB6170-M8 |
NUT M8 |
1 |
|
33 |
GB93-8 |
SPRING WASHER 8 |
9 |
|
34 |
GB97.1-8 |
FLAT WASHER 8 |
1 |
|
35 |
MRS80-805004 |
RUBBER |
1 |
|
36 |
GB5783-M8X20 |
SOCKET HEAD SCREW M8X20 |
8 |
|
37 |
MRS62-6000 |
VIBRATION DAMPER |
2 |
|
38 |
MRS62-5003R |
PROTECTIVE FRAME, RIGHT |
1 |
|
39 |
MRS62-5003L |
PROTECTIVE FRAME, LEFT |
1 |
|
ITEM NO. |
PART NO. |
DESCRIPTION |
QTY |
|
40 |
GB5783-M6x20 |
SOCKET HEAD SCREW M6X20 |
11 |
|

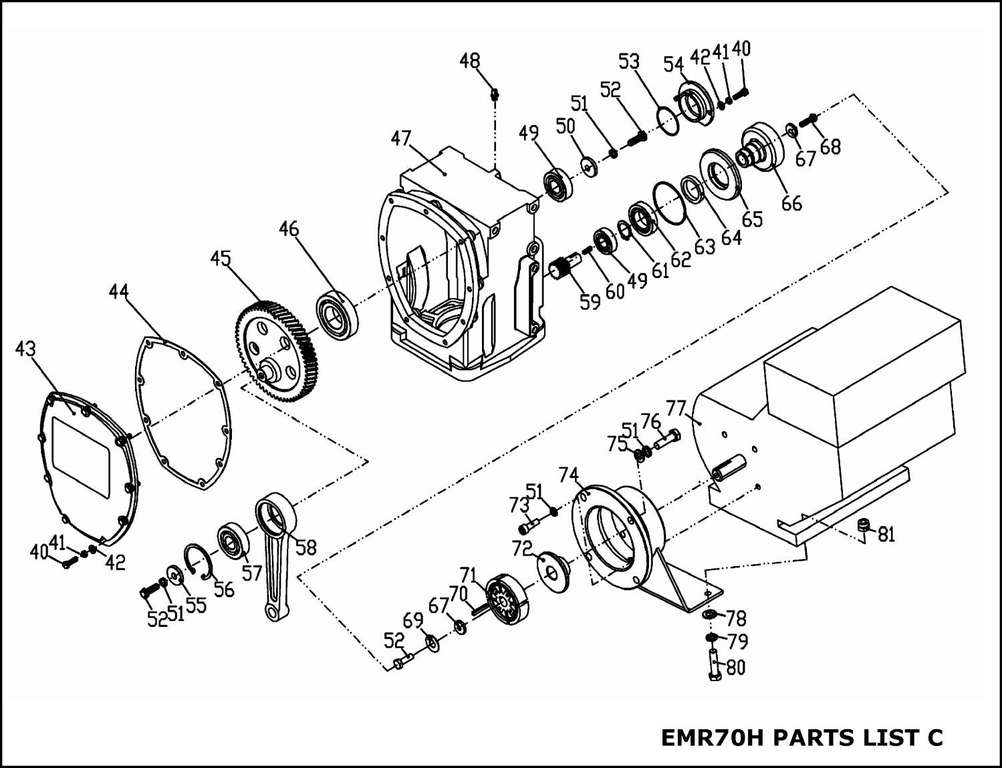

41 |
GB93-6 |
SPRING WASHER 6 |
11 |
|
42 |
GB97.1-6 |
FLAT WASHER 6 |
11 |
|
43 |
MRS62-4002A |
CRANK CASE COVER |
1 |
|
44 |
MRS62-4003 |
GASKET |
1 |
|
45 |
MRS80-804101C |
CRANK GEAR |
1 |
|
46 |
60CLX-ZC-2 |
BEARING |
1 |
|
47 |
EMR70-4001 |
CRANK CASE |
1 |
|
48 |
GB1152-M6 |
NUT M6 |
1 |
|
49 |
60CLX-ZC-1 |
BEARING |
|
|
50 |
MRS80-804102 |
GASKET |
1 |
|
51 |
GB93-8 |
SPRING WASHER 8 |
10 |
|
52 |
GB5783-M8x25 |
SOCKET HEAD SCREW M8X25 |
|
|
53 |
60CLX-OXQ-1 |
O-RING |
1 |
|
54 |
MRS80-804404A |
BEARING COVER |
1 |
|
55 |
MRS80-804302 |
WASHER |
1 |
|
56 |
GB893.1-52 |
RETAINING RING 52 |
1 |
|
57 |
60CLX-ZC-3 |
BEARING |
1 |
|
58 |
MRS80-804301B |
CONNECTING ROD |
1 |
|
59 |
MRS80-804201C |
GEAR SHAFT |
1 |
|
60 |
GB1095-6x20 |
KEY |
1 |
|
61 |
GB894.1-35 |
RETAINING RING 35 |
1 |
|
62 |
60CLX-ZC-4 |
BEARING |
1 |
|
63 |
60CLX-OXQ-2 |
O-RING |
1 |
|
64 |
60CLX-CXMFQ |
GASKET |
1 |
|
65 |
EMR70.8000 |
SPACER |
1 |
|
66 |
MRS80-807000b |
CLUTCH DRUM |
1 |
|
67 |
MRS80-804202 |
SPACER |
|
|
68 |
GB5783-M8x30 |
SOCKET HEAD SCREW M8X30 |
1 |
|
69 |
MRS80-809006 |
WASHER |
1 |
|
70 |
GB1095-5X25 |
KEY |
1 |
|
71 |
EMR70.9000 |
CLUTCH ASSY. |
1 |
|
72 |
EMR70.0002 |
BEARING COVER |
1 |
|
73 |
GB70.1-M8x25 |
HEX HEAD SCREW M8X25 |
4 |
|
74 |
EMR70.0005 |
FLANGE |
1 |
|
75 |
GB97.1-8 |
FLAT WASHER |
4 |
|
76 |
GB5783-M8x40 |
SOCKET HEAD SCREW M8X40 |
4 |
|
77 |
HONDA GX160 SD2 |
ENGINE |
2 |
|
78 |
GB97.1-10 |
FLAT WASHER |
2 |
|
79 |
GB93-10 |
SPRING WASHER 10 |
2 |
|
80 |
GB5783-M10x40 |
SOCKET HEAD SCREW M10X40 |
2 |
|
81 |
GB889-M10 |
LOCK NUT M10 |
2 |
|
ITEM NO. |
PART NO. |
DESCRIPTION |
QTY |
|

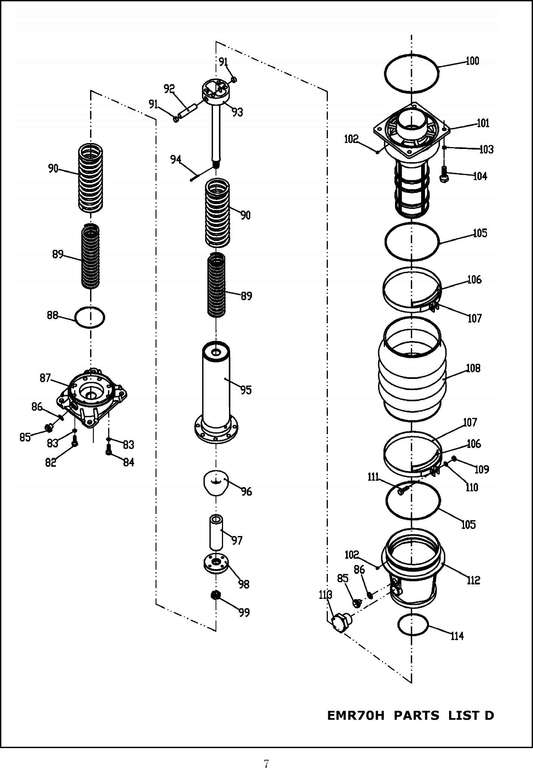

82 |
GB70-M10x20 |
HEX HEAD SCREW M10X20 |
4 |
|
83 |
GB93-10 |
SPRING WASHER 10 |
8 |
|
84 |
GB70-M10x40 |
HEX HEAD SCREW M10X40 |
4 |
|
85 |
JB/ZQ4450-M14x1.5 |
PLUG THREADED |
2 |
|
86 |
MRS80-803112 |
GASKET |
4 |
|
87 |
MRS80-803101B |
FOOT PLATE |
1 |
|
88 |
GB3452.1-87.5x3.55 |
O-RING |
1 |
|
89 |
MRS80-803002B |
SPRING, INNER |
2 |
|
90 |
MRS80-803001B |
SPRING, OUTER |
2 |
|
91 |
MRS80-803306 |
PLUG |
2 |
|
92 |
MRS80-803302 |
PISTON PIN |
1 |
|
93 |
MRS80-803301B |
PISTON ROD |
1 |
|
94 |
GB/T91-3.2x32 |
PIN |
1 |
|
95 |
MRS80-803102A |
SPRING CYLINDER |
1 |
|
96 |
MRS80-803304 |
STOPPER, UPPER |
1 |
|
97 |
MRS80-803305 |
STOPPER, LOWER |
1 |
|
98 |
MRS80-803303 |
PISTON END |
1 |
|
99 |
GB/T6178-M18x1.5 |
SCREW M8X1.5 |
1 |
|
100 |
GB3452.1-160x5.3 |
O-RING |
1 |
|
101 |
MRS80-803201A |
GUIDE CYLINDER |
1 |
|
102 |
MRS80-803202 |
PIN |
2 |
|
103 |
GB93-10 |
SPRING WASHER 10 |
4 |
|
104 |
GB5783-M10X35 |
SCREW M10X35 |
4 |
|
105 |
GB3452.1-160x3.55 |
O-RING |
1 |
|
106 |
MRS80-803205 |
SPACER |
2 |
|
107 |
MRS80-803204 |
BELLOW CLAMP |
2 |
|
108 |
MRS80-803203 |
BELLOW |
1 |
|
109 |
GB/T6170-M8 |
NUT M8 |
2 |
|
110 |
GB97.1-8 |
FLAT WASHER |
2 |
|
111 |
T5783-M8X35 |
SCREW M8X35 |
2 |
|
112 |
MRS80-803111B |
SPRING CYLINDER |
1 |
|
113 |
GB1160.2-M24x1.5 |
OIL LEVER GAUGE |
1 |
|
114 |
GB3452.1-95x2.65 |
O-RING |
1 |
|
ITEM NO. |
PART NO. |
DESCRIPTION |
QTY |
|

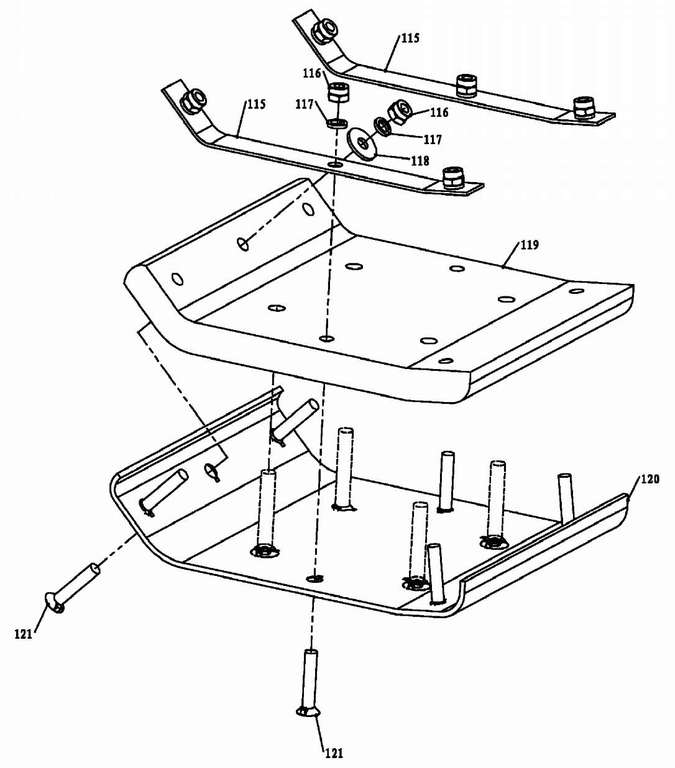

115 |
EMR70.2003 |
FOOT COVER |
2 |
|
116 |
GB889-M10 |
LOCK NUT M10 |
7 |
|
117 |
GB93-10 |
SPRING WASHER 10 |
7 |
|
118 |
GB96.1-10 |
FLAT WASHER |
1 |
|
119 |
MRS80-802002 |
FOOT |
1 |
|
120 |
MRS80-802001 |
METAL SHEET |
1 |
|
121 |
MRS80-802005 |
SCREW M10X52 |
7 |
